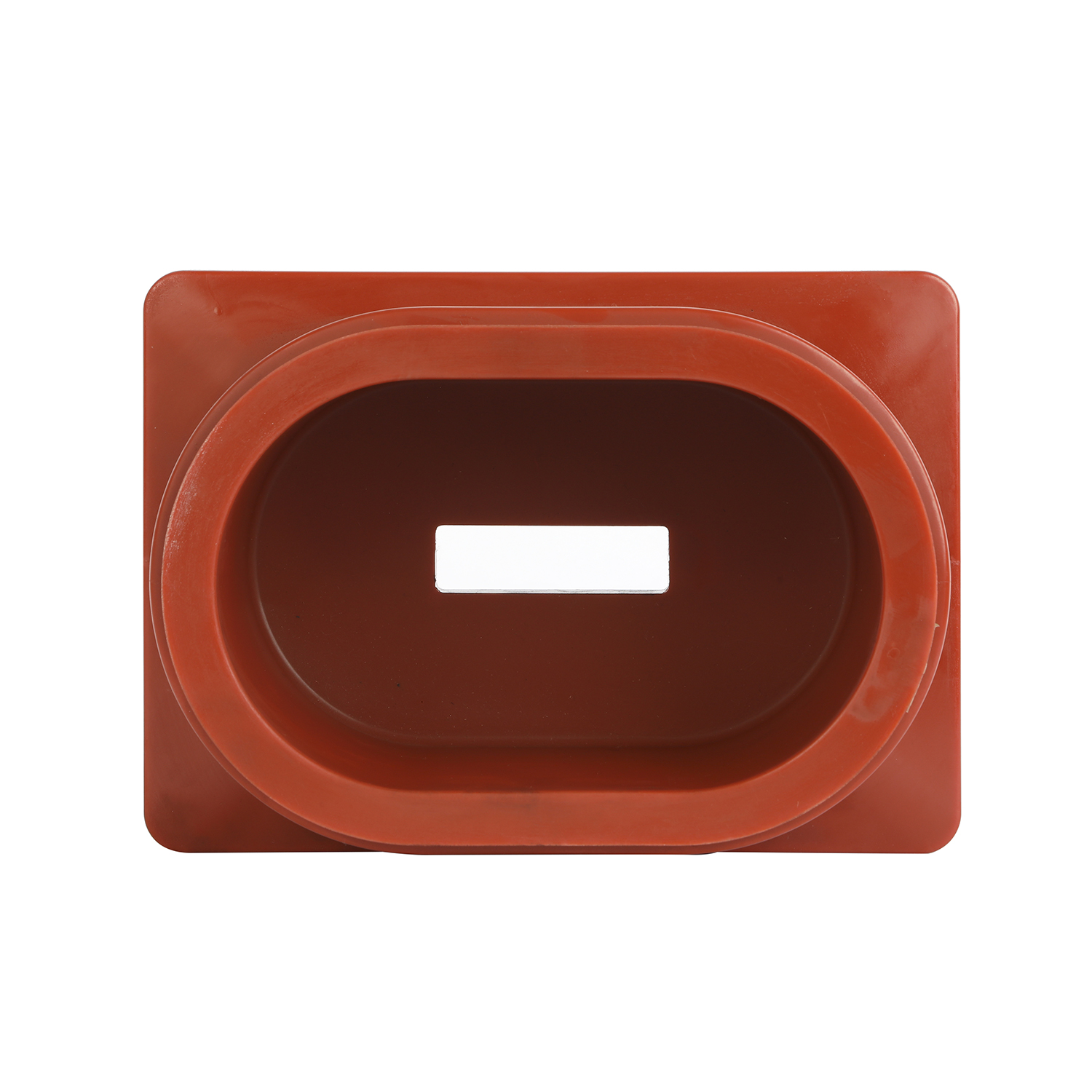

Indoor Busbar Insulated Epoxy Resin Bushing Wall Entrance Medium Voltage

TG3-12Q/140X200X230mm Epoxy Resin insulator Spout Wall Bushing with KYN28-12 Switchgear

1. The temperature rise of the end of the contact box at the end of the line under long-term operation does not exceed 65 ℃ under the rated electricity;
2. The experience of lead-out final call not more than 65 °C if the contact box is used for long time in rate Current con The wall-piercing sleeve is used to increase the insulation function of the mother-row in the cabinet and play a certain supporting role. In the middle, in the end.
3. Insulators only act as support, sometimes using a belt point sensor directly instead of an insulator as well as as as sensors.

4. Concave and convex translation by screw handle adjustment and positioning, and locking nut. Undo the hydraulic moving die position when damaging the die.

PACKAGING

All insulators are packed in weatherproof containers in order to protect the products during land, air and sea transportation. Several different grades of packaging can be offered depending on the mode of transport and the expected storage conditions. Special packaging arrangements can be accommodated upon the users' request.

wall bushing insulators

wall through bushing

Indoor Busbar Insulated Epoxy Resin Bushing Wall Entrance Medium Voltage Images
